Irish Army CJ-3B Jeep
Topic Started: Jun 3 2014, 10:22 PM (7,681 Views)
ghengismccann
Member Avatar

I suppose its about timeI get my finger out and get started in this fine GB.
So in the 9 years between the end of WW2 and the Korean War the world was awash with surplus jeeps both new and unused.
According to Karl Martin's book ,the Bible on Irish Army vehicles, the Army were talked out of buying any at all and instead invested the
taxpayers hard earned in 10 new CJ-3A's and later the more improved CJ-3B. These lasted until the 1960's
Over 350,000 CJ (Civilian Jeep) series CJ-2A,3A and CJ-5A were produced. The 2A&3A were larger versions of the war-time model
and the 3B & 5A were larger still, featuring the new Hurricane engine.This required a larger bonnet hence "Hi-Hat Jeep''. The 5A being a civilian version of the M38A1.
Posted Image
These Jeeps were built or assembled in over 20 counties, Mahindra in India made nearly 900,000 and Mitsubishi in Japan over 200,000.
Now there is a kit of almost every Jeep variant from the Bantam to the MUTT in 1/35th, that is unless you want a CJ-3B. The only way there ,is to either post-date a Jeep kit, make it larger,wider and rebuild the bonnet or take the only kit of the Japanese version, the J20 and pre-date it by making it smaller.

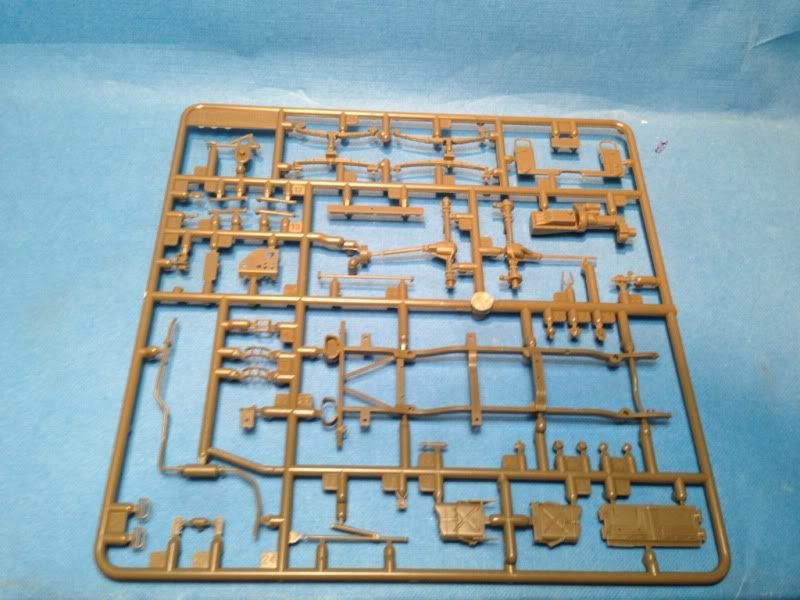

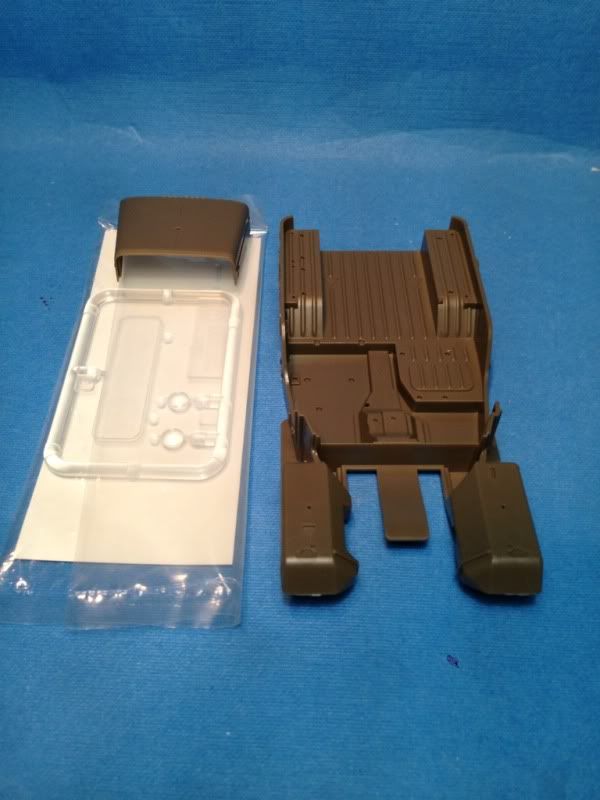

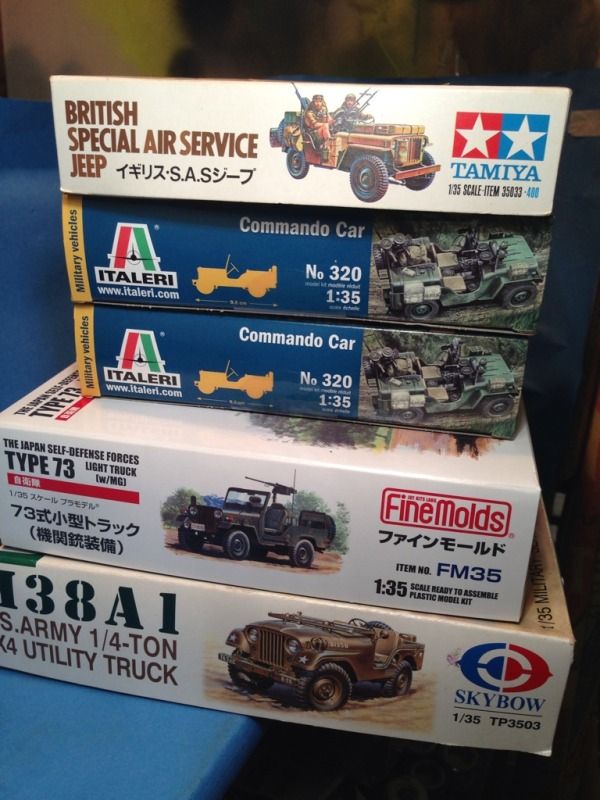

So the obligatory box and sprue shots.
Posted Image
Posted Image
[IMG]http://i220.photobucket.com/albums/dd1/GenghisMcCann/Irish%20Army%20CJ-3B%20Jeep/A252E7F7-7826-4AD0-A190-8286C2FF39E2-1661-
0000014484E0BC23_zps041c8f73.jpg[/IMG]
Posted Image
Posted Image

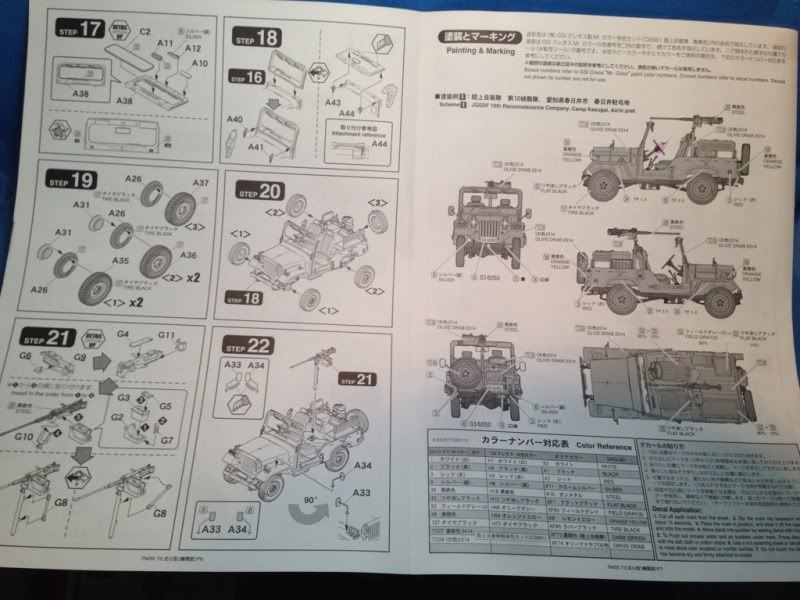

Basically I am trying to find the differences between the Mitsubishi J20 and the Willys CJ-3A and either add them or remove them and hopefully an Irsh Army Jeep will emerge, something I have wanted for some years.
regards
:>

Edited by ghengismccann, Jun 3 2014, 10:36 PM.
"....the old men shall cause themselves to be carried into the public squares,
To excite the courage of the warriors, to preach the downfall of Kings,
and announce the glories of the Republic"
Convention of the Republic,Paris, Dec; 1793
Offline Profile Quote Post Goto Top

Padraig
Member Avatar
Modelling for fun
Look forward to seeing this and I hope it works out for you.
No longer a SmellyOgre
Posted Image
Offline Profile Quote Post Goto Top

35th-Scale
Member Avatar
Sean
You never do anything easy, but great to see we'll have something Irish in the GB. Will be watching with interest!

Good Luck
Sean
Posted Image
Posted Image
Posted Image




Offline Profile Quote Post Goto Top

Karl187
Member Avatar

Fantastic subject choice- can't wait to see this one develop. Best of luck with it!
Karl N. Hoy

On The Bench:


Ethiopian BMP-1 (Trumpeter 1/35)

Posted Image
Posted Image
Posted Image
Offline Profile Quote Post Goto Top

ghengismccann
Member Avatar

"You never do anything easy"
Sean sadly only too true,caused by very advanced, possibly terminal AMS.
I tried a few times to go OOB but I just couldn't do it.
Sad really maybe we should start a Charity Foundation.
have a flag day, involve Bono maybe.
Anyho a morning spent working out what needs doing.
The Mitsubishi J20 is clearly longer and wider
Posted Image
Posted Image

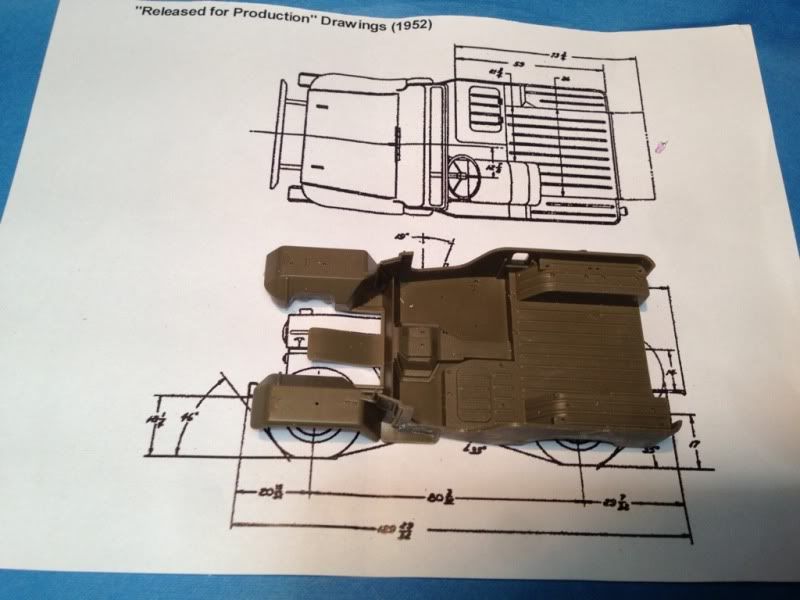

Measured against a 1/35th scale drawing shows some changes required.
Posted Image
So far I have identified;

Cut out 4 mm from the chassis and frame and re-glue.
Re-shape the rear wheel arches.
Reshape the front mud-guards
Replace the split rear tailgate with a drop-down Jeep version
Put the "pinched" waist back in by the front seats
Add the WILLYS badges
Build and fit a new Dashboard.
replace the front and rear bumpers with flat-bar types
Retrofit the steering column and wheel
Add a Jeep spare wheel bracket and fuel can holder
Reshape the windscreen and add vacuum wipers/piping.
Add windscreen rests and clips to bonnet
Remove the side-lighting system and back date to Willys type
Add the lip on the body shell.
and finally the major jobs. The wheels are 16" and the tires are much slimmer so I need new wheels.
And this one will take a minute so stay with me here. Originally the Jeeps where built with US left hand drive, as you would expect.
The Irish Army imported them as sold/standard and drove the with left -hand drive.
However the Japanese who also drive on the left built theirs with right-hand drive.
So I have to swap the tool box under the passenger seat and the fuel tank under the drivers seats and make good the floor and then fill in the filler cap and move it to the opposite side of the chassis.
So I think I may need these from the stack
Posted Image
regards
:>
"....the old men shall cause themselves to be carried into the public squares,
To excite the courage of the warriors, to preach the downfall of Kings,
and announce the glories of the Republic"
Convention of the Republic,Paris, Dec; 1793
Offline Profile Quote Post Goto Top

Admin


Not too much to do then, should be done be the end of the week. :P

Like everyone else I'm looking forward to the project, you always pick interesting subjects to work on.
Offline Profile Quote Post Goto Top

Barry
Member Avatar

Jaysus that "to do" list would frighten the life outta me
Offline Profile Quote Post Goto Top

Murfv
Member Avatar
Abuser Of Plastic
Jaysus! asways one for the for the non-standard build....will be watching with interest.
Vincent
It's my hobby and I will enjoy it my way!

Posted Image
Offline Profile Quote Post Goto Top

35th-Scale
Member Avatar
Sean
Definitely the worst case of AMS I've ever seen..... ;)
Posted Image
Posted Image
Posted Image




Offline Profile Quote Post Goto Top

ghengismccann
Member Avatar

Definitely the worst case of AMS I've ever seen..... ;)

:unsure: Only too true .I forgot to mention an engine and new exhaust system

Hangs head in shame :-"

Perhaps we can have a small room at D3.

Me "Hello my name is Paddy and I have AMS since 1957"

All" Hello Paddy"

:>

"....the old men shall cause themselves to be carried into the public squares,
To excite the courage of the warriors, to preach the downfall of Kings,
and announce the glories of the Republic"
Convention of the Republic,Paris, Dec; 1793
Offline Profile Quote Post Goto Top

ghengismccann
Member Avatar

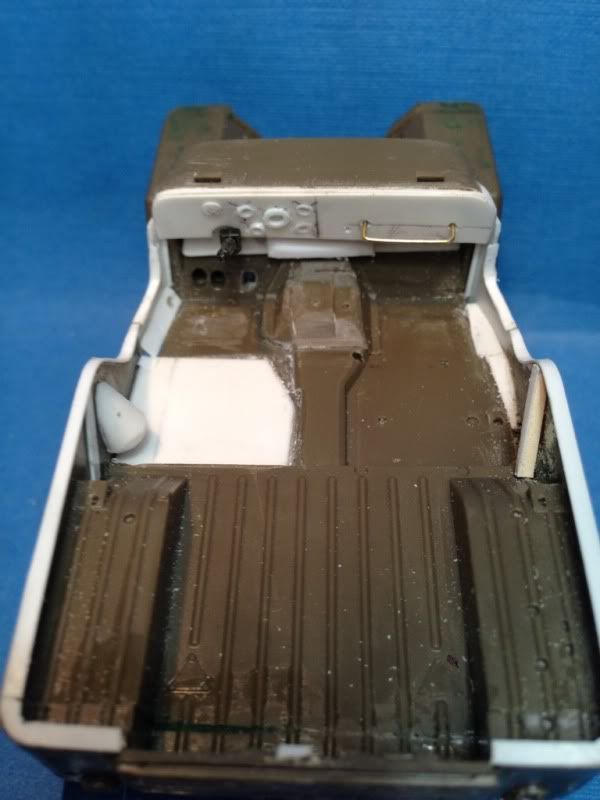

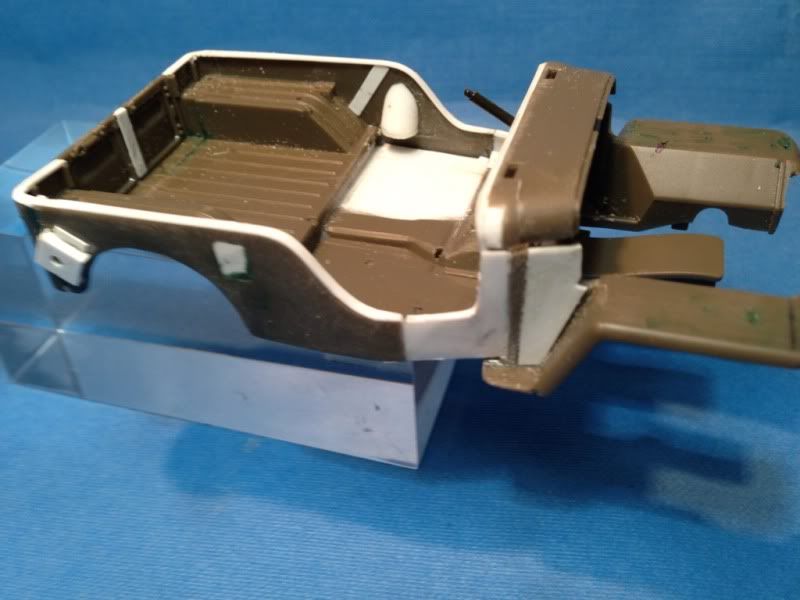

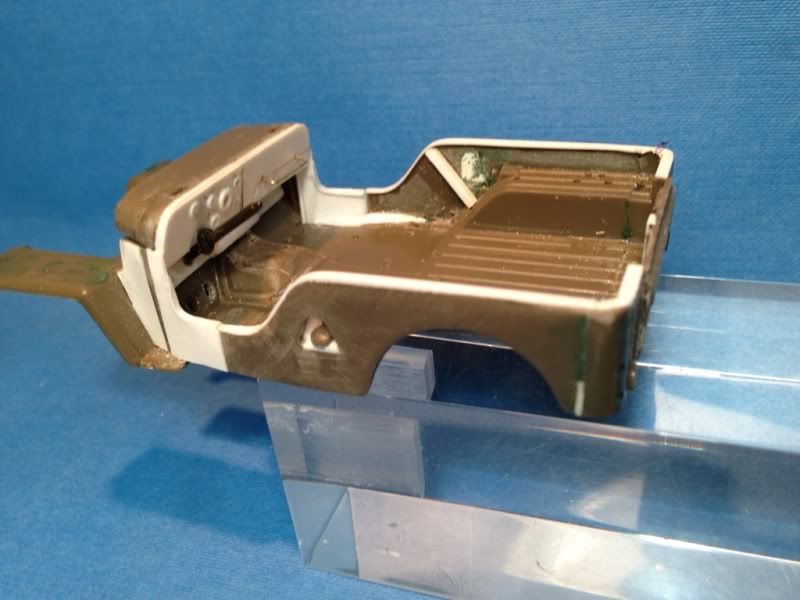

So far the tool box has been cut out and the center console reshaped as have the rear wheel arches
The filler cap has been moved and the old one filled in.
Also the dash has been started, the pinched waist and edging strip completed.
The white thing is the spare wheel bracket. You may also notice the thin green line at the rear.
This is the filler need to plug the small gap after I fed it through the scroll saw and rejoined it after taking off the 4 mm
I think it looks about right.
Posted Image
Posted Image
Posted Image
Hpefully more after the week-end.
:>
"....the old men shall cause themselves to be carried into the public squares,
To excite the courage of the warriors, to preach the downfall of Kings,
and announce the glories of the Republic"
Convention of the Republic,Paris, Dec; 1793
Offline Profile Quote Post Goto Top

Prenton
Member Avatar

ghengismccann
Jun 6 2014, 03:10 PM
So far the tool box has been cut out and the center console reshaped as have the rear wheel arches
The filler cap has been moved and the old one filled in.
Also the dash has been started, the pinched waist and edging strip completed.
The white thing is the spare wheel bracket. You may also notice the thin green line at the rear.
This is the filler need to plug the small gap after I fed it through the scroll saw and rejoined it after taking off the 4 mm
I think it looks about right.

Hpefully more after the week-end.
:>
"more after the weekend" ???

Surely you could finish this by tomorrow, Paddy, and not leave us waiting for a whole two days to see the job done........ ;)

Philip

(best of luck with this - however long it takes, there's a suitable competition class or two awaiting on September 27th (and a new Trophy - the IPMS Ireland Non-Aviation Trophy, which is described in the rules as being for any Irish themed non-aviation subject. This trophy - but not the competition classes - is exclusively for IPMS Ireland members, of which you are an honoured member)
"To boldly go..."

Posted Image Posted Image

Posted Image
Offline Profile Quote Post Goto Top

Joseph M

Bloody Hell Paddy,
You never take the easy option. But if you want realism this is the price that you have to pay!
Bloody good build, following this as I am the others with great interest.
But Stick & String definitely rule O.K.
Cheers
Joe M
On the bench in order of nearest to completion;
A Model 1/72 Spad A.2 Finished 24/4/18
A Z Models 1/72 Morane "WR". (Schneider race entry from 1914).
K P Models 1/72 Avia BH-3
Mark 1 Models 1/144 Gloster Gladiator Finished 1/7/8
SRAM Models 1/144 SIA 7-B (Resin)
Valom Models 1144 A pair of Sopwith Pups
MSD Models 1/72 Vickers Vimy 66 Commercial
Revell 1/72 Fokker D.VII conversion to a two seater
Curtiss Condor (added 24/4/18) 1/81
Ansaldo S.V.A 9 (added 24/4/18)

Posted Image

Posted Image
Offline Profile Quote Post Goto Top

ghengismccann
Member Avatar

Moving swiftly along (Sorry Philip but not that swiftly)
Posted Image
Posted Image
Posted ImagePosted Image

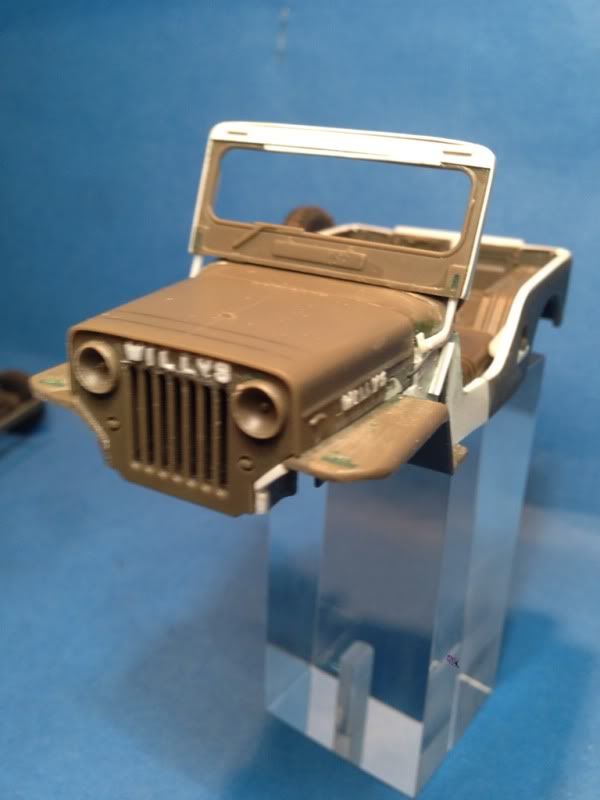

The letters for the brand name appear a bit too big to my eye now.I thought I had some smaller brass but it looks like I put them"somewhere safe"
The Slaters 2/3mm ones where the only ones close to the original font
The wheel is the only one I can find big enough and with a slim tyre.It comes from a Tamiya GAZ 66 However I may need to rework the hubs and bolts a fair bit to look the part.
next chopping a lump out of the chassis.

regards
:>
"....the old men shall cause themselves to be carried into the public squares,
To excite the courage of the warriors, to preach the downfall of Kings,
and announce the glories of the Republic"
Convention of the Republic,Paris, Dec; 1793
Offline Profile Quote Post Goto Top

Manxman
Member Avatar

Wow very nice conversion.

Can I ask what material you using for the white mouldings ?
Pete

On the bench - What isn't 😀

Posted Image
Offline Profile Quote Post Goto Top

ghengismccann
Member Avatar

Thank you.
Evergreen strip pulled between two fingers to put a slight curl in it,
then glued and pressed bit by bit.
Without Evergreen and Plastruct I would have to give this hobby up. :cry:
regards
:>
"....the old men shall cause themselves to be carried into the public squares,
To excite the courage of the warriors, to preach the downfall of Kings,
and announce the glories of the Republic"
Convention of the Republic,Paris, Dec; 1793
Offline Profile Quote Post Goto Top

Karl187
Member Avatar

That is absoloutely stellar work- the 'WILLYS' emblem in styrene is just amazing- how did you manage to get it cut so finely and precisely? The contouring work is also really great- you can see the shape really starting to come alive now- love the dashboard and the rear door- just class!
Karl N. Hoy

On The Bench:


Ethiopian BMP-1 (Trumpeter 1/35)

Posted Image
Posted Image
Posted Image
Offline Profile Quote Post Goto Top

yeehah1
Member Avatar

ghengismccann
Jun 11 2014, 09:09 PM
Thank you.
Evergreen strip pulled between two fingers to put a slight curl in it,
then glued and pressed bit by bit.
Without Evergreen and Plastruct I would have to give this hobby up. :cry:
regards
:>
14 06 2014
You could make a fortune if you resin-copied it... imagine - a resin kit of a type of jeep that there exists no kit of. Put in a box with an IPMS Ireland logo on it..... :>

Liam
Posted Image
Offline Profile Quote Post Goto Top

ghengismccann
Member Avatar

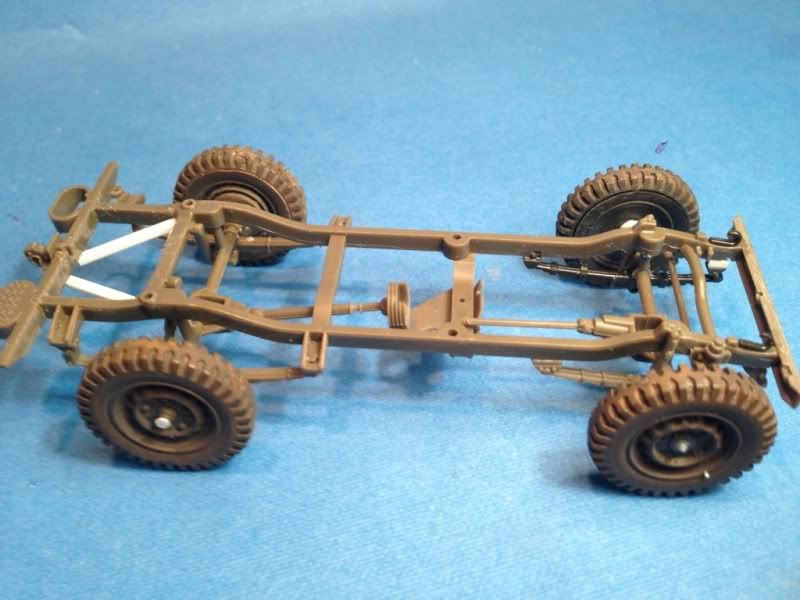

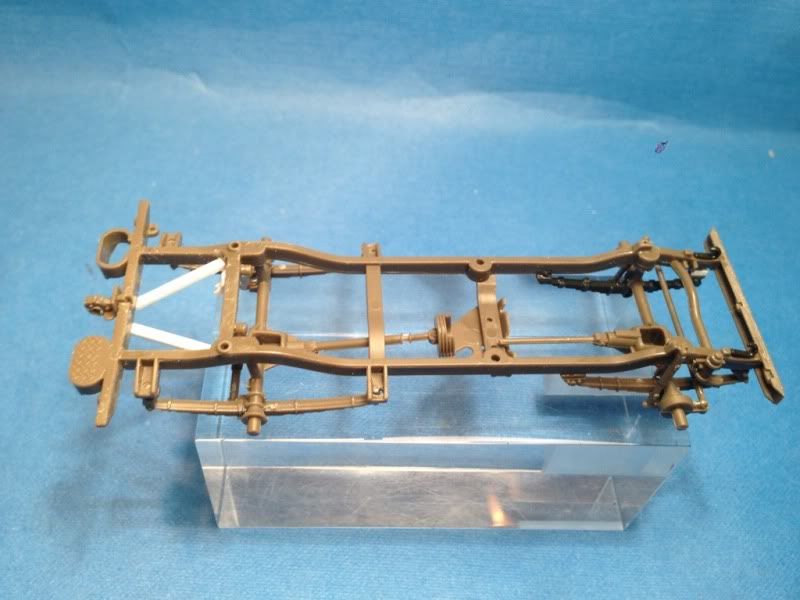

I shortened the frame and replaced the rear sections.
Posted Image
Still working out the wheels.
Posted Image

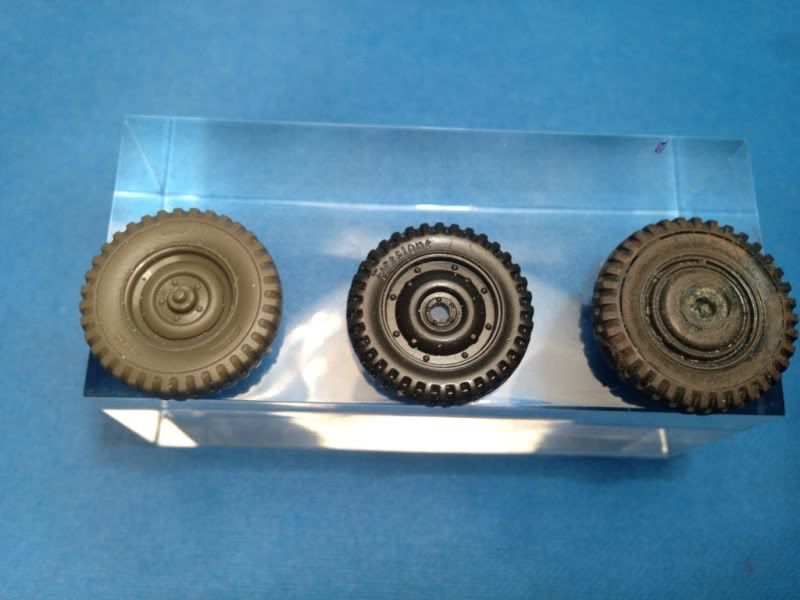

The one on the left is the kit wheel, correct hub, right side but too fat for a 1950's wheel.
The middle is a standard Italerai Jeep wheel and the right one is the GAZ, right size,right thickness but the hub needs work.I will work something out.

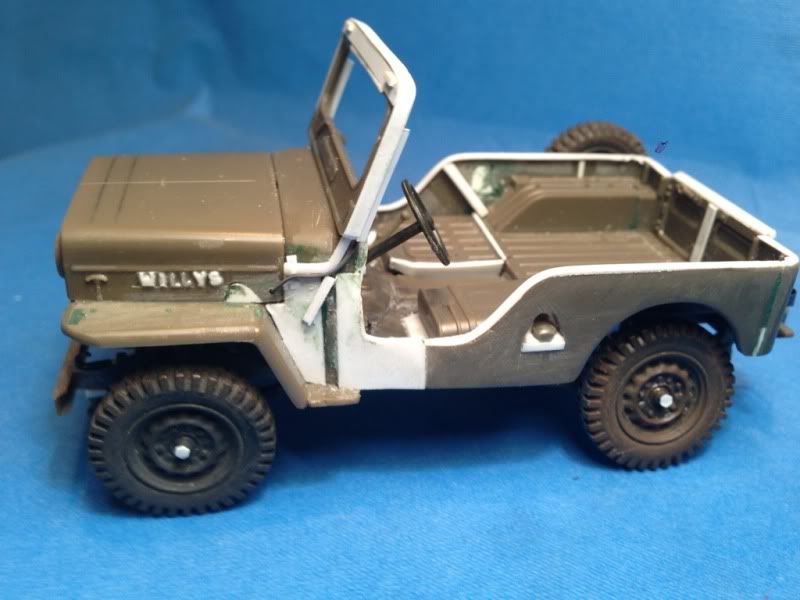

Just tacked on the wheels and body for effect.
Posted Image
Posted Image
Posted Image
Must do something about that bloody S :bat:
Karl
Thanks for the kind words.I have a collection of letters, brass,plastic,resin, collected over the years. These are Slaters 2/3mm white plastic
any railway model shop should have some or check their web site,if not I can send you a packet.
Liam
Nice idea.Once a few years ago, late at night,upon licensed premises, with drink taken,Roy Kinsella and I talked about setting up a company to produce Irish themed resin kits,conversions and figure kits . Crossleys, various wartime and post war A/Cars, modern Irish Defense Force figures in 1/35th. That sort of thing.
Luckily we sobered up :X

regards
:>
"....the old men shall cause themselves to be carried into the public squares,
To excite the courage of the warriors, to preach the downfall of Kings,
and announce the glories of the Republic"
Convention of the Republic,Paris, Dec; 1793
Offline Profile Quote Post Goto Top

35th-Scale
Member Avatar
Sean
Looking good

A company like your late night proposal would be welcome but I'm not sure there is the market for it to be profitable
Posted Image
Posted Image
Posted Image
