So today's episode will be about railings...... I probably should put it on looong time ago, but since noone was interested in that kind of stuff... well it's here now ;) You can use that method not only for railings, applications of this technique are countless ;)

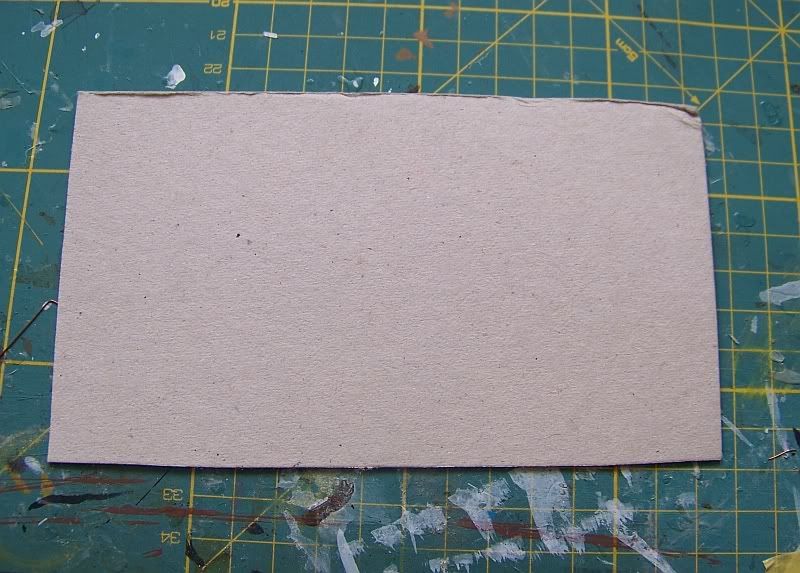

Step one: you need to know what you want to make, take piece of cardboard

Posted Image

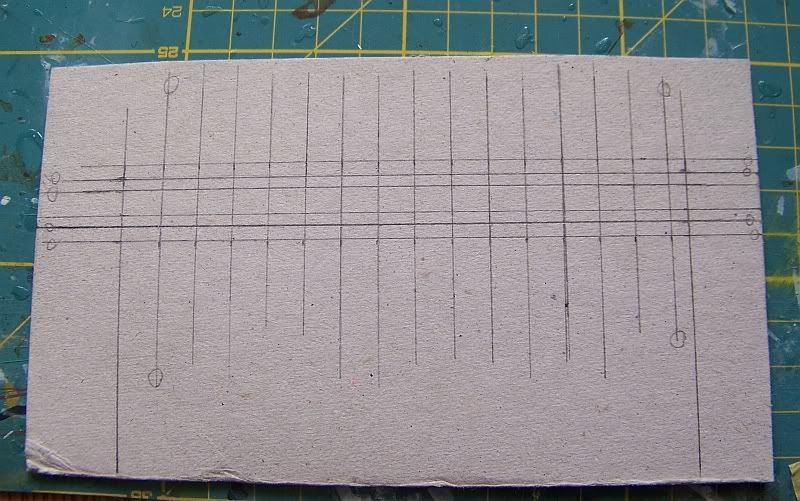

Step two: you draw your design on it

Posted Image

Step three: cut out the interior

Posted Image

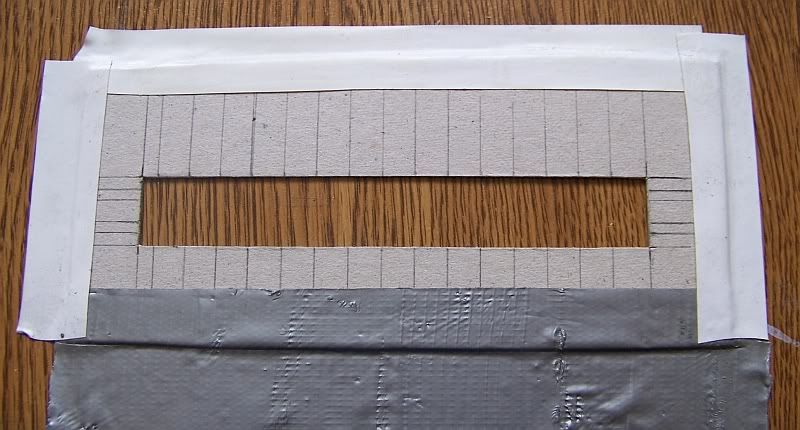

Then tape it to the table (to make it flat throughout the operation)

Posted Image

Step four: glue top line across the cut out

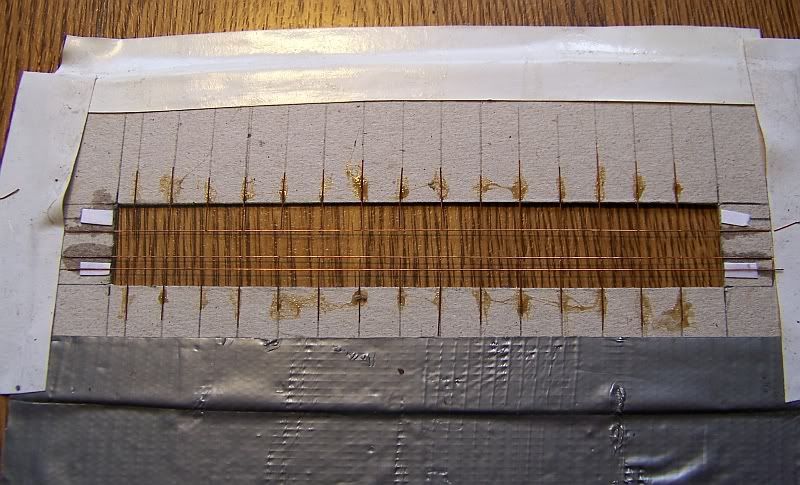

Posted Image

Then you glue stanchions but just to the cardboard, just touching the top line.
Step five: just dab the stanchions to top line with tiny amounts of Super Glue
Step Six: you have to add a pieces of paper to equalize the thickness of the stanchions
Step seven: glue bottom line/lines, but again only to cardboard.
Step eight: dab the bottom line/lines to stanchions with SG.

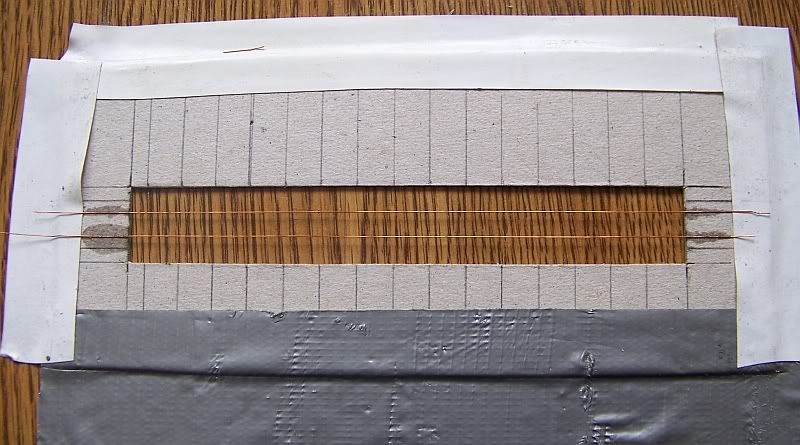

Posted Image

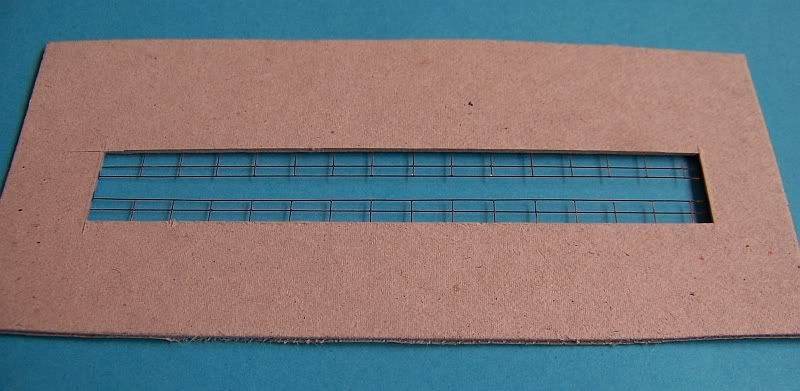

You should get something like that:

Posted Image

Step nine: prime the bugger with rattle can primer or airbrush primer

Posted Image

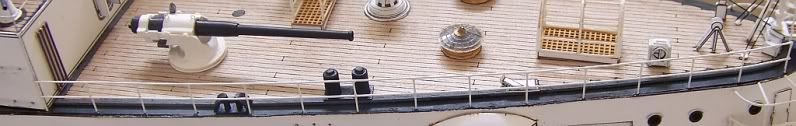

Step ten: cut it out and put on the model

Posted Image
