M2A2 ODS Bradley OIF II Iraq 2004 +++ FINISHED +++; Dragon 1:72
Topic Started: Jan 25 2016, 01:54 PM (6,726 Views)
Jasonb
Member Avatar

Hi all,

Well, with the Typhoon finished, I can move on to this one, with its ridiculously long name! :) I wasn't certain if it qualified or not, but I checked with Padraig and it just scrapes in.

Here's a box shot:


Posted Image


I got it at the Kit Swap at the IMPS Nationals last year and I thought it was a good kit for €9. It'll be only my third armour, and my first 'modern' one. I plan to get some rattle can for the main colour, but haven't got it yet. That said, it should be ok as (from my vast experience with building armour) painting tends to come near the end of the build, after a lot of gluing. :) Speaking of which, the kit doesn't actually tell you what the main all over colour is! :) Any ideas? I presume it's some sort of desert sand or something?

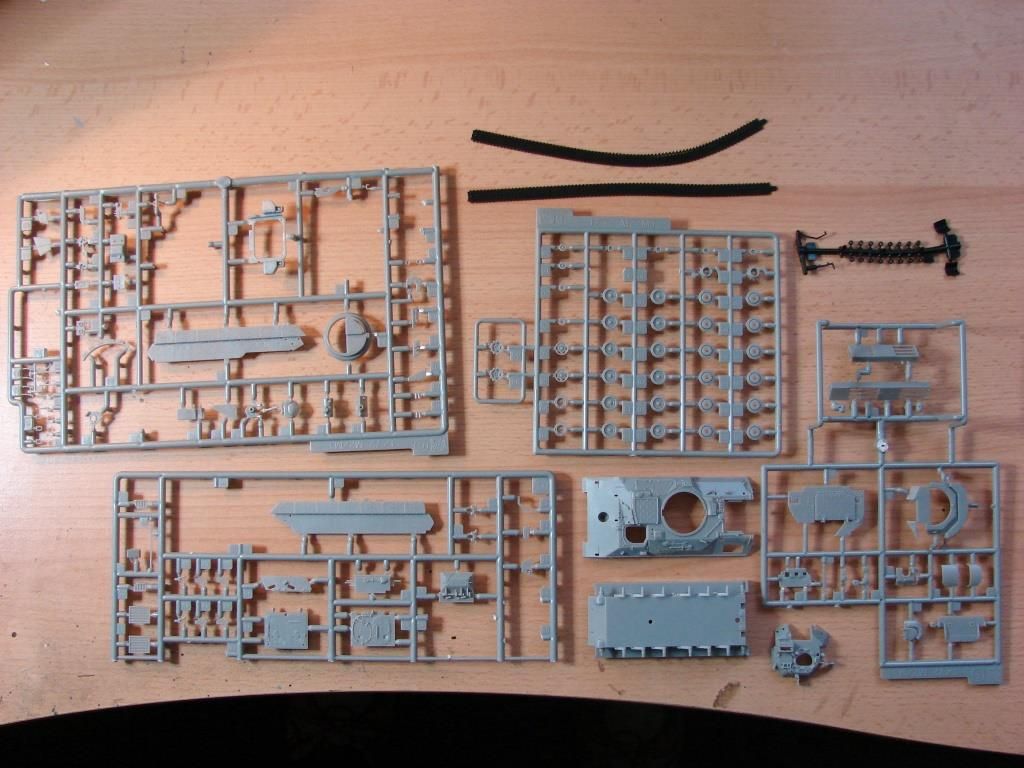

Anyhow, here is the plastic:


Posted Image


The plastic looks a little thick, but has lots of detail. You get vinyl tracks, fenders and other bits and pieces as well. There are a few pieces that aren't needed for this version, but rather than letting you have them anyhow, the people at Dragon decided to keep them, as they've been snipped out! :)

More pics when I have something to show...

J.

Edited by Jasonb, Mar 13 2016, 10:17 PM.
On the bench -
Tamiya 1:20 Ferrari F2001

Completed builds -
Click here
Online Profile Quote Post Goto Top

Manxman
Member Avatar

Welcome onboard Jason. Nice choice the Bradley is a lovely AFV.

From when I built the Meng the closest colour I got was Vallejo Model Air - sand yellow 71.028 but I'm sure others might recommend something else.

Looking forward to following this.

Pete

On the bench - What isn't 😀

Posted Image
Offline Profile Quote Post Goto Top

35th-Scale
Member Avatar
Sean
Humbrol 237 Desert Tan would also be good even though it's meant for UK modern armour. And it comes in a rattle can! The shades of these did vary quite a bit in reality.

Anyway looks nice....I seem recall seeing it on the table at kit swap but not my preferred scale.

Good Luck
Sean
Posted Image
Posted Image
Posted Image




Offline Profile Quote Post Goto Top

Padraig
Member Avatar
Modelling for fun
I would agree on the above paint recommendations.

Looks like a nice kit Jason, looking forward to seeing it progress and welcome to the group build :)
No longer a SmellyOgre
Posted Image
Offline Profile Quote Post Goto Top

Jasonb
Member Avatar

Thanks lads... And thanks for the Humbrol Rattle Can suggestion Sean, Mark's Models have it and I'll be getting it tomorrow...

J.
On the bench -
Tamiya 1:20 Ferrari F2001

Completed builds -
Click here
Online Profile Quote Post Goto Top

Jasonb
Member Avatar

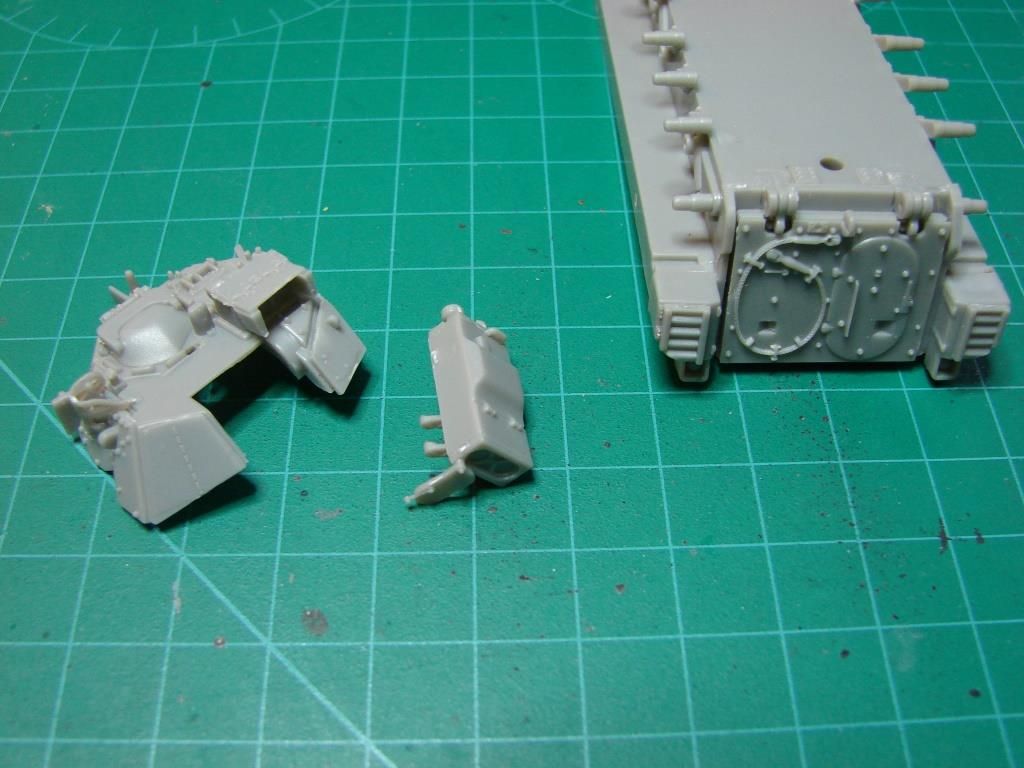

Well, I've been pottering away at this, gluing on some bits and pieces to the lower hull and to the turret. I must admit, I've no idea what half the bits on the turret are! :)


Posted Image

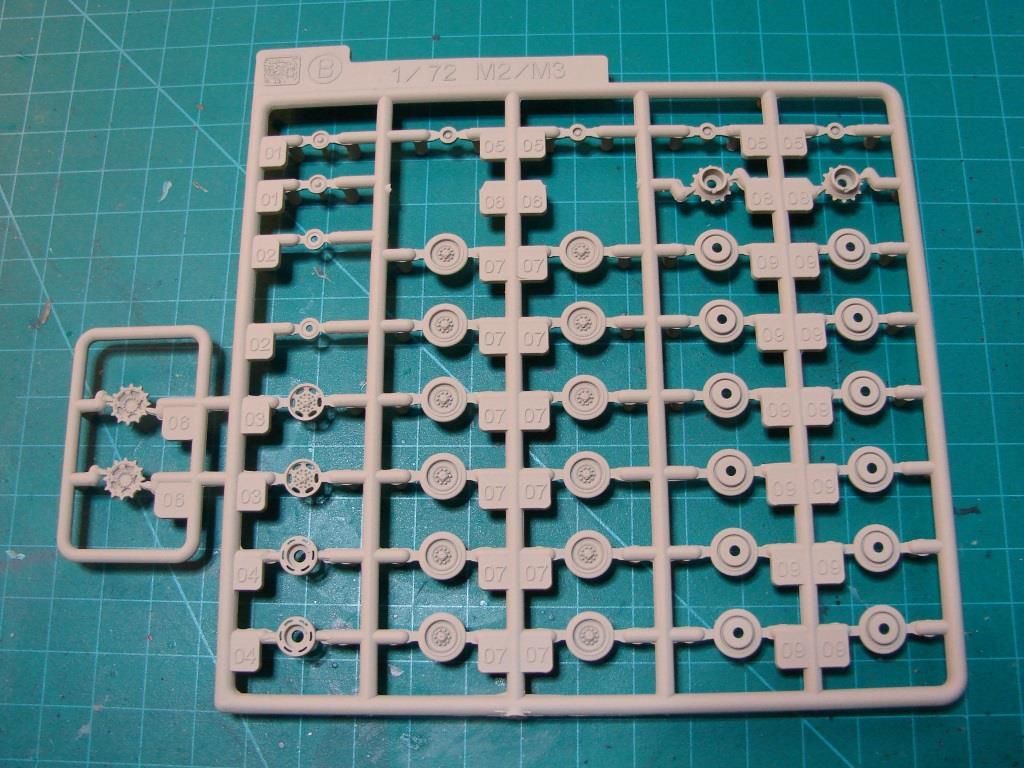

I also got the Humbrol rattle can that Sean recommended, and I've got the wheels sprayed and ready to be cut out and the road wheels painted:


Posted Image


I have to say, I'm happy with that colour, so thanks Sean!

Am home sick at the moment, so I should get a bit done on this over the next couple of days.

Thanks...

J.
On the bench -
Tamiya 1:20 Ferrari F2001

Completed builds -
Click here
Online Profile Quote Post Goto Top

Manxman
Member Avatar

Builds looking good Jason :)
Pete

On the bench - What isn't 😀

Posted Image
Offline Profile Quote Post Goto Top

Buck Rogers
Member Avatar

Coming together well!
Posted Image
Offline Profile Quote Post Goto Top

Buck Rogers
Member Avatar

Thinking of a Bradley for the next purchase...how's this one to build? Recommended?
Posted Image
Offline Profile Quote Post Goto Top

Jasonb
Member Avatar

It's a decent kit Brian. The plastic is a little soft, and therefore so is some of the detail. And it's easy to warp the plastic when removing it from the sprues. But so far it goes together well with no fit issues at all.

The instructions leave a bit to be desired. As I said, there's no mention of the main colour at all. There seems to be two sprue 'C's, but sprue F is called E in the instructions. And the instructions aren't always clear which piece goes exactly where. But I would recommended it, it looks good and like I said, so far it goes together just fine.

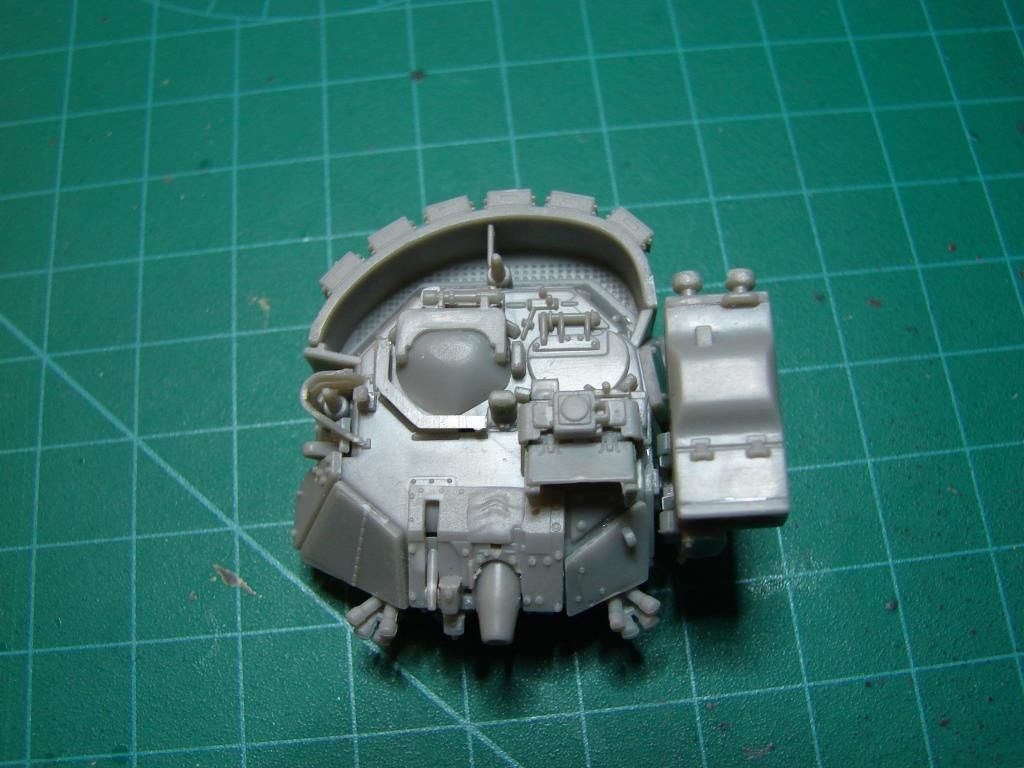

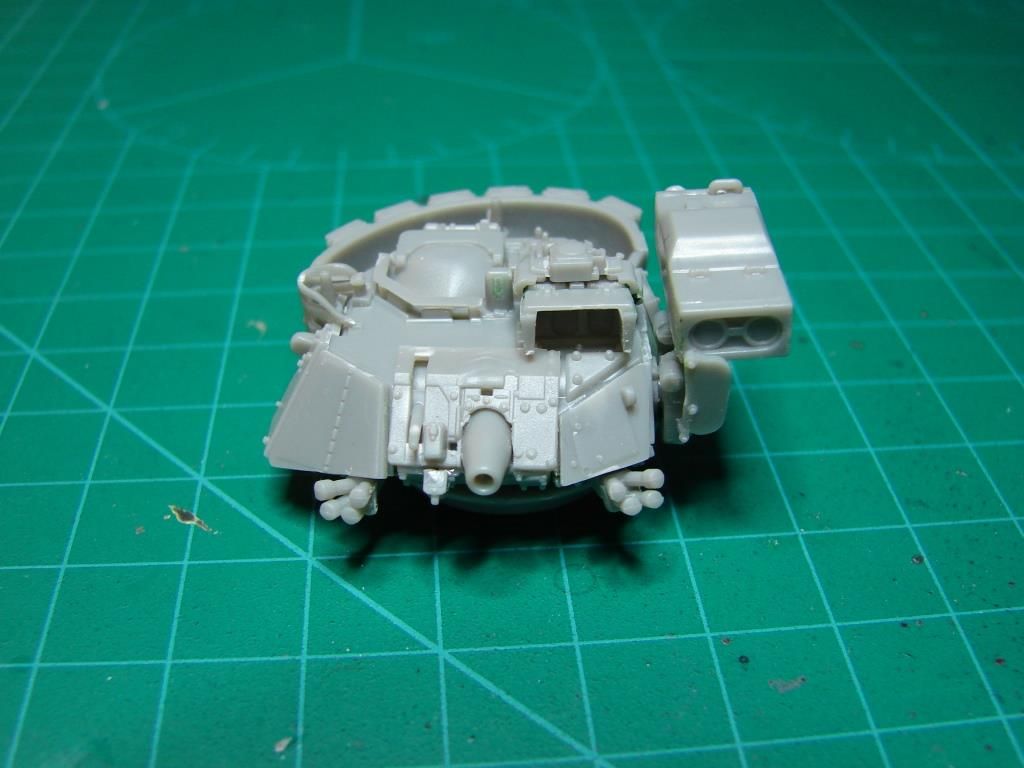

I have the turret pretty much finished, apart from a couple of small pieces and the barrel itself, and a bit of a tidy up. The TOW missile launcher is just dry fitted to show you what it looks like, I'll probably paint it separately as otherwise it blocks too much of the turret from my rattle can:


Posted Image


Posted Image


Posted Image

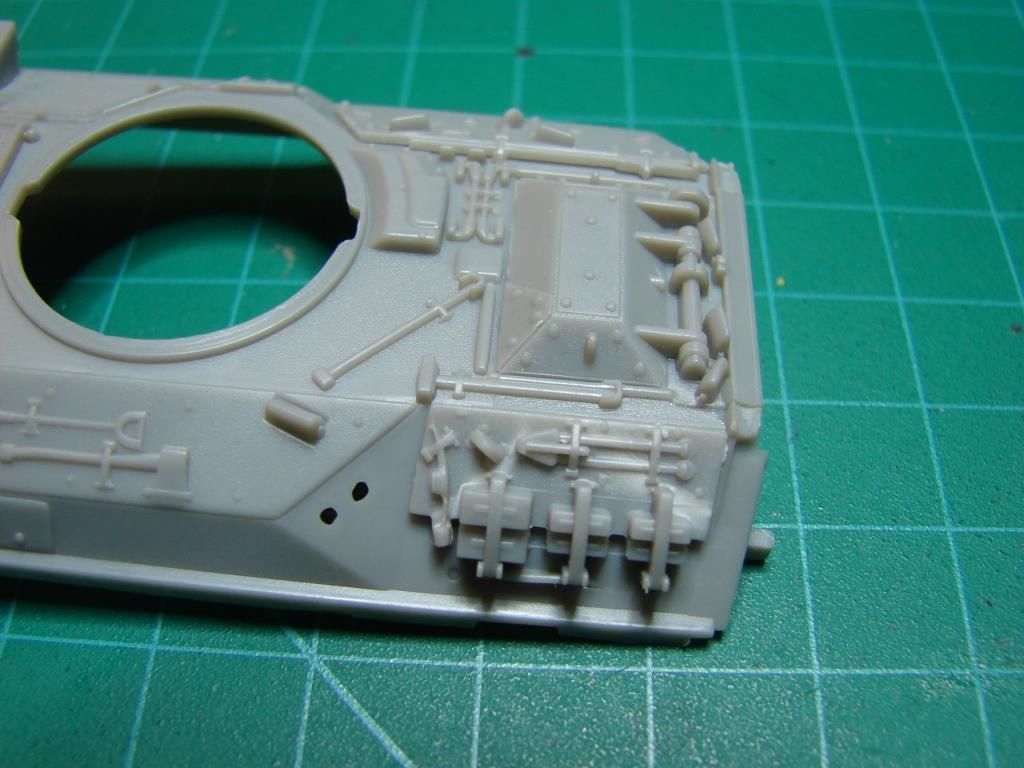

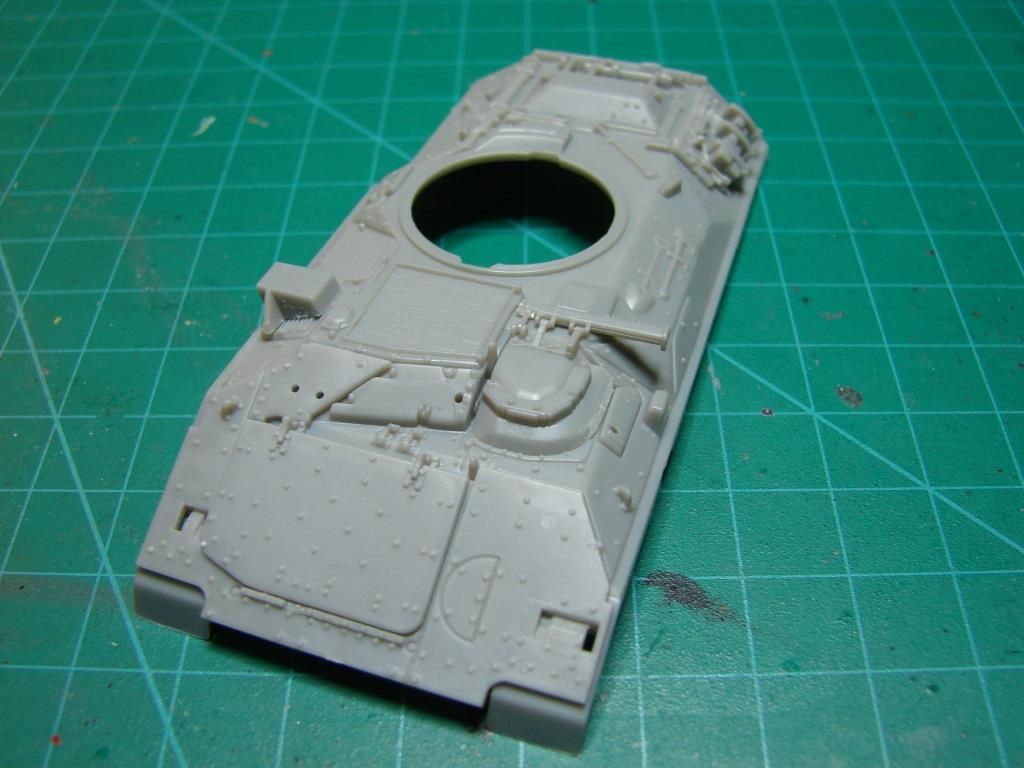

The upper hull is getting there, still some pieces to stick on:


Posted Image


Posted Image


I'll keep working away at it, shouldn't be too long before it's ready for primer...

J.
Edited by Jasonb, Jan 30 2016, 10:41 PM.
On the bench -
Tamiya 1:20 Ferrari F2001

Completed builds -
Click here
Online Profile Quote Post Goto Top

Buck Rogers
Member Avatar

What kind of weathering will you go with? Heavy sand?
Posted Image
Offline Profile Quote Post Goto Top

Jasonb
Member Avatar

Nothing too heavy, I tend to try to avoid heavy weathering as I don't have the skills for it, and it just looks a mess. But yes, it will be sand, and I have some Mig Pigments and Tamiya's Sand weathering stick for that.

Quick question about weathering the armour. As I understand it, most of the Bradley is Aluminium, with some steel added. So should I weather the Aluminium with a shinier 'silver' look, compared to the duller 'gumetal' look of the weathered steel?

Thanks...

J
Edited by Jasonb, Jan 31 2016, 03:17 PM.
On the bench -
Tamiya 1:20 Ferrari F2001

Completed builds -
Click here
Online Profile Quote Post Goto Top

FiSe
Member Avatar
Heil Mickey!
Personally, I wouldn't go as far as bare metal, Jason. It's personal preference, but there isn't that much of aluminium shining through the dust. Even the scrapes on the side are darker colour - primer?

Posted Image
Filip . . . .

Posted Image

Offline Profile Quote Post Goto Top

Padraig
Member Avatar
Modelling for fun
As far as I know the sand paint was sprayed over green or nato camo patterns, so that's likely why it looks darker.
No longer a SmellyOgre
Posted Image
Offline Profile Quote Post Goto Top

Jasonb
Member Avatar

Cool, good advice, thanks Sean and Padraig. Though I think it's going to be one of those times when there's a difference between what the real thing looks like, and what people expect a model to look like (like making aircraft models *far* smoother than they are in real life, or making the D Day stripes far neater!) :)

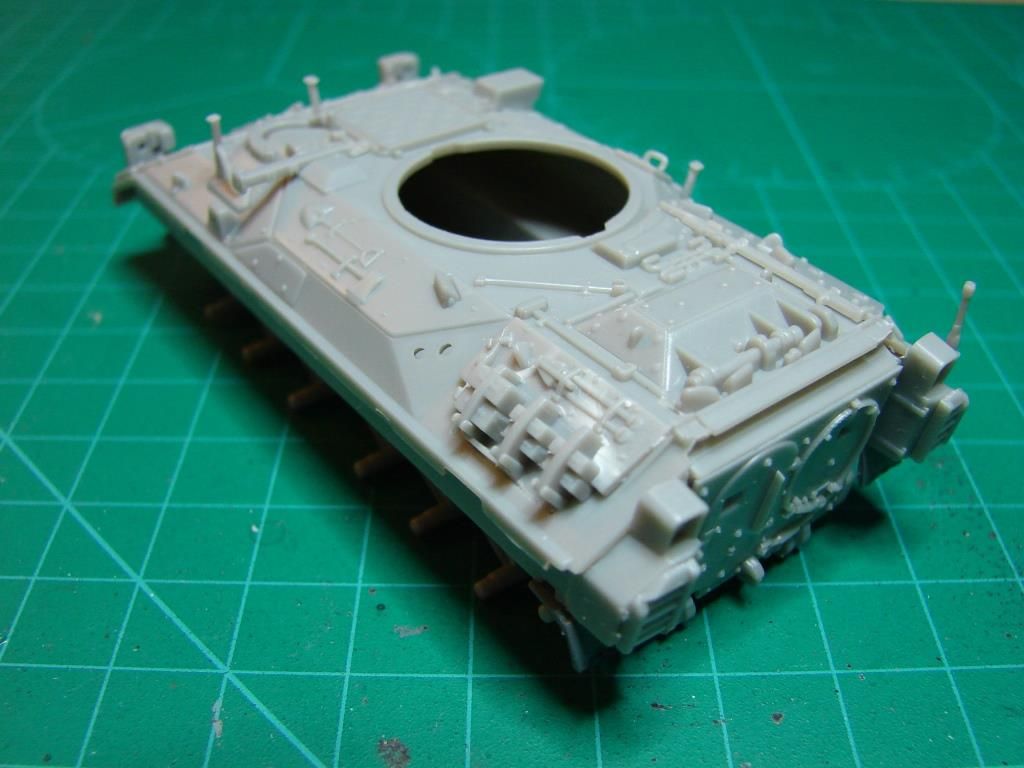

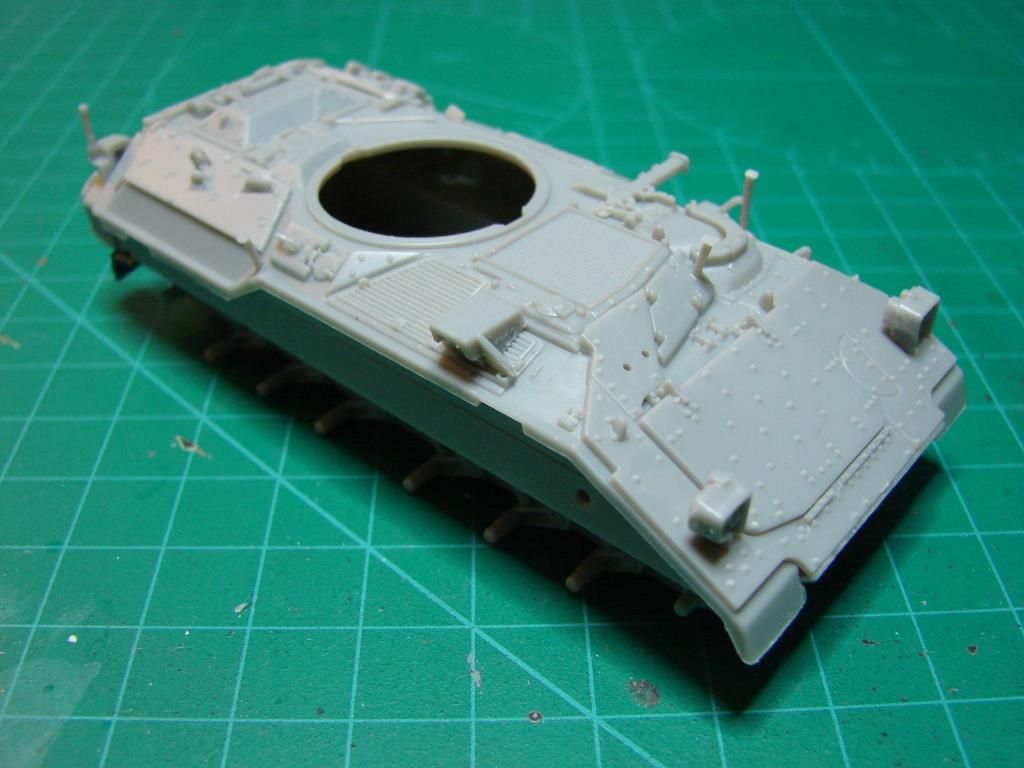

Anyhow, haven't been near the bench in a while, but I got a bit more done tonight. The turret is now ready for primer, with everything on bar the cannon. I also have the upper and lower hulls glued together and it's ready for primer too:


Posted Image


Posted Image


With luck I'll get the hull and turret primed tomorrow, and with a lot of luck I'll get it sprayed too. The side skirts etc. will be done separately (as if I add them now they'll cover too much of the hull to enable me to paint it properly). The wheels are painted with the sand, but I need to paint the road wheels themselves.

Thanks...

J.
On the bench -
Tamiya 1:20 Ferrari F2001

Completed builds -
Click here
Online Profile Quote Post Goto Top

fs2005
Member Avatar

You're a real Renaissance Man Modeller Jason , as a minimum Formula 1 , planes and AFV in last 12 months . I think it's good to keep things varied .
Posted Image

Posted Image

Offline Profile Quote Post Goto Top

Padraig
Member Avatar
Modelling for fun
Nice progress on this Jason, good luck with the priming / painting.
No longer a SmellyOgre
Posted Image
Offline Profile Quote Post Goto Top

Buck Rogers
Member Avatar

Looking well! The model is fairly well detailed!
Posted Image
Offline Profile Quote Post Goto Top

Jasonb
Member Avatar

Thanks lads... Didn't get near this since I last posted, but I'm hoping to finally get it primed (and maybe painted) tomorrow...

J.
On the bench -
Tamiya 1:20 Ferrari F2001

Completed builds -
Click here
Online Profile Quote Post Goto Top

Manxman
Member Avatar

It looks good there, Jason.
Pete

On the bench - What isn't 😀

Posted Image
Offline Profile Quote Post Goto Top
